ClicOn Holders and Dashmounts

ClicOn is a mounting platform for installation of communication equipment into vehicles.

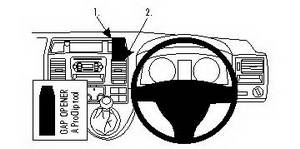

1. Use the enclosed alcohol pad to clean the area where the ClicOn is to be installed. Press the thin end of the enclosed gap opener into the gap between the frame surrounding the center console and the dashboard, to widen the gap. Peel off the cover of the adhesive tape on the ClicOn . Hook/Press the angled edge on the upper part of the ClicOn into the gap next to the gap opener.

2. Pull out the gap opener. Pull the ClicOn toward you so it flexes.

3. Hook the angled edge on the lower part of the ClicOn into the upper part of the air vent.

4. The ClicOn is in place.
